Eco Heavy Terminal Tractor, RoRo Tractor, Shunt Truck or Yard Truck
- Cut fuel costs by up to 30%.

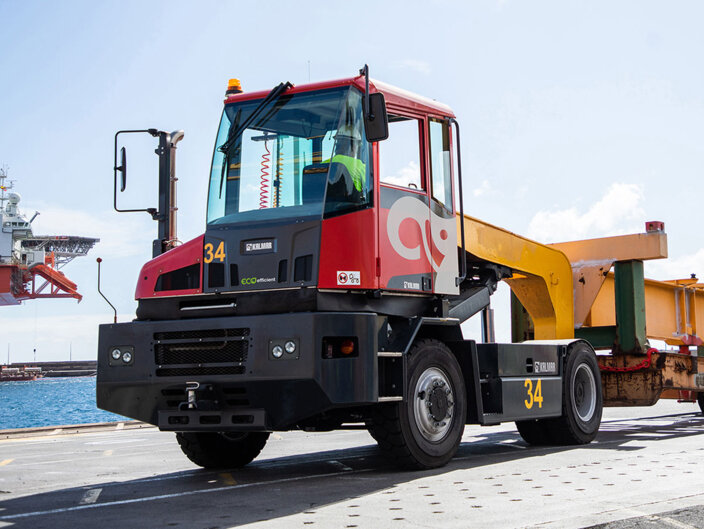

Kalmar Eco Heavy Terminal Tractor.
The Kalmar Eco Heavy Terminal Tractor or RoRO Tractor, ideal for RoRo, Ports and Terminals and Industrial Applications, will reduce your fuel consumption by up to 30%, cutting your costs and emissions while still allowing you to move heavy loads faster, more effectively and safely. This is achieved by combining the latest Stage 5 Cummins engine with a Dana RTE14 Transmission with an improved torque converter and Lock-Up LUC, which reduces fuel consumption and cuts your emissions, making the Kalmar Eco Heavy Terminal Tractor a highly eco-efficient and sustainable choice.
The Kalmar Eco Heavy Terminal Tractor or Shunt Truck can be delivered to your door as a complete package which includes:
- The Kalmar Fuel Guarantee
- Access to Kalmar Insight
- A highly efficient Stage 5 Cummins engine
- The latest Dana RTE14 transmission
- A new control system with a more intuitive interface
- Greatly improved torque and Lock-up LOC.
Technical information
| Technical info | Eco Heavy Terminal Tractor TT618i, TR618i, TRL618i |
|---|---|
|
Engine
|
Cummins Stage 5 |
|
Transmission
|
Dana RTE14 |
|
Power (kw-rpm)
|
168 kW @ 2200 rpm |
|
Torque (Nm-rpm)
|
1186 Nm @ 1300 rpm |
|
Front axle
|
SISU |
|
Rear axle
|
SISU |
|
Tyres
|
300/80 – 315/80 R22.5 |
Get complete control over your fuel costs.
Knowing exactly what your fuel costs are going to be each month gives you a greater level of financial predictability, which is why Kalmar is offering a Fuel Saving Guarantee with every Kalmar Eco Heavy Terminal Tractor as an option. With an agreed fixed level of fuel consumption, based on a set of agreed metrics, you’ll have complete control over your variable fuel costs. Should the fuel usage levels exceed the guaranteed levels of fuel consumption, Kalmar will compensate you for the additional fuel cost with a one off payment.
Monitor the performance of your Kalmar Eco Heavy Terminal Tractor with Kalmar Insight.
The Kalmar Eco Heavy Terminal Tractor is ready to be connected to Kalmar Insight, which gives you the ability to track, monitor, and analyse your equipment’s day to day fuel consumption and performance so you can take immediate actions to optimise your RoRo tractor’s operational efficiency. Kalmar Insight can be used to monitor and manage your maintenance activities for your entire fleet, even equipment from other manufacturers once it is connected.
Three different models to choose from.
The Kalmar 2-wheel drive terminal tractor for RoRo handling or shunt truck fifth wheel can lift up to 25,000kgs, while our two different 4-wheel drive models can lift up to 32,000kgs and their fifth wheel has a ±10º lateral tilt to make moving heavy loads quicker and safer. Making them ideal for RoRo, Ports or Terminals and Industrial applications. You can find the Eco Heavy Terminal Tractor specifications above.
Your drivers will appreciate the spacious and ergonomically designed cabin, which will also help enhance operational safety while moving heavy loads around your yard.
Our eco heavy terminal tractor cabin has been completely redesigned and has more space and legroom for your drivers with the controls all within easy reach. With improved access and visibility your drivers will be safer and happier as the cabin now has:
- 4 storage compartments
- 2 bottle holders
- 12v power
- a glove locker
- space for two radio stacks.
What is the difference between a Terminal Tractor, Yard Truck Shunt Truck or RoRo Tractor?
Yard Trucks, Shunt Trucks, RoRo Tractors and Terminal Tractors are exactly the same machine used for cargo handling at ferry terminals (RoRo), ports and terminals and industrial facilities. These are just the different names that are used in different parts of the world. At Kalmar, we refer to them as Kalmar Terminal Tractors globally.
Guaranteed to perform.
The Kalmar Eco Heavy Terminal Tractor or RoRo Tractor can be delivered as a complete package:
- The Kalmar Fuel Guarantee
- Access to Kalmar Insight
- A highly efficient Stage 5 Cummins engine
- The latest Dana RTE14 transmission
- A new control system with a more intuitive interface
- Greatly improved torque and Lock-up LOC.
Can bus system be fitted as standard?
- Operating information and diagnostics are readily available on your driver’s display
- Troubleshooting can occur in a 1/10th of the time
- Proportional lift boom control with the auto-revs-up feature is standard
- Standard blockings on engagement while tractor is moving to secure your load
- Auto-stop after adjustable idling time to reduce fuel consumption
- Engine-protecting delay stop for added safety
- Fewer wire harnesses, no circuit boards making it easier to maintain
- Ready to be connected to Kalmar Insight for remote monitoring.
Safer to operate.
- Enlarged doors and rear platform
- LED lights fitted as standard
- Improved cabin visibility
- Ergonomically design cabin
- Improved drivers control system and interface
- Improved and standardised diagnostics.
Up to 90% CO2 emission with HVO100 fuel.
Kalmar Eco Heavy Terminal Tractors fitted with a Cummins engine are certified to use HVO100 fuel – with all new terminal tractors being able to use HVO100 straight away. If you own an older certified machine, you just need to discuss with your local Kalmar support team if your equipment needs a minor upgrade or if it is ready to start using HVO100 straight away.
Start cutting your CO2 emissions by up to 90% as soon as you start using HVO100 fuel. To find out more about HVO100 click here.
Frequently Asked Questions
Does using less fuel mean the Kalmar Eco Heavy Terminal Tractor will be less efficient?
By combining the latest Stage 5 Cummins engine with the new Dana RTE14 Transmission which has a greatly improved torque convertor and Lock-Up LUC, you will be able to shift heavier loads, faster, safely and more efficiently, using less fuel while producing less carbon emissions.
Will the Kalmar Eco Heavy Terminal Tractor reduce my carbon emissions?
In comparison with previous generations of Heavy Terminal Tractors, our Eco Heavy Terminal Tractor can reduce your fuel consumption and emissions by up to 30% saving you money while reducing your carbon footprint.
How can the Kalmar Fuel Savings Guarantee save me money?
With an agreed and fixed level of fuel consumption, based on a set of agreed metrics, you’ll have complete control over your variable fuel costs. Should the fuel usage levels exceed the guaranteed levels of fuel consumption, Kalmar will compensate you for the additional fuel cost with a one-off payment.
Why do you offer 4WD and 2WD Eco Heavy Terminal Tractors?
When moving extra heavy loads or having to work on an incline, it's safer and more efficient to have all the wheels working for you, to avoid any slipping or sliding. A 2WD version is also available with our RoRo Eco Heavy Terminal Tractor if loading access is on level ground or near to it.
