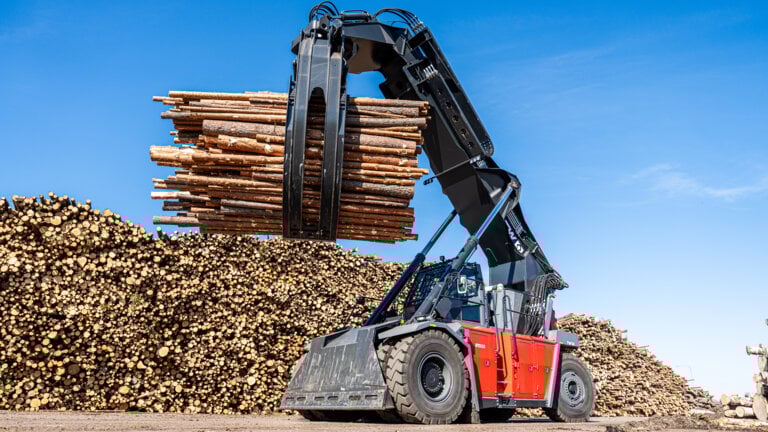

Logstackers
Log handling for paper mills and saw mills, with lifting capacity of 17 or 32 tons.
Kalmar in partnership Toijala Works (TW) LogStackers has provided efficient log handling for paper mills and saw mills, with lifting capacity of 17 or 32 tons.
Technical information
| Technical info | RTD17 | RTD32 |
|---|---|---|
|
Lifting capacity (kg)
|
17000, at 2300mm | 3200, at 2600mm |
|
Engine
|
Volvo D11 Stage V | Volvo D11 Stage V |
|
Standard grapple size
|
5,5m2 | 8,5m2 |
|
Optional up to
|
7,0m2 | |
|
Turning radius (m)
|
6,5 | 7,8 |
|
Lifting height under grapple (m)
|
6,33 | 8,15 |
|
Gearbox
|
Dana TE30 | ZF 5WG310 |
|
Drive axle
|
Kessler | Kessler |
|
Noise level in cabin
|
65 dB | 65dB |
|
Optional up to
|
9,4m2 |
Efficiency in the wood yard
Kalmar in partnership with TW LogStackers has provided efficient logistics for the wood yards for decades.
The new generation Logstackers has a lifting capacity of 17 tons or 32 tons with a hydraulic mild-hybrid solution to provide speed in operations and a good fuel consumption.
Evolved design

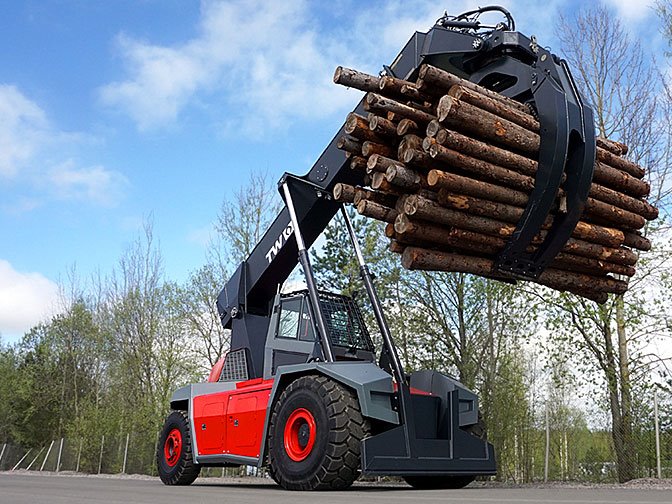

The TW LogStacker has evolved into a very efficient machine to handle logs in the wood yard. With its short chassis it can maneuver in the narrow lanes between the stockpiles. With a powerful engine and mild-hydraulic hybrid system ensuring quick lifting and handling in the up to a 9,4 m2 grapple.
Driver comfort
The cabin is a comfortable and quiet place for the driver. The machine is fully controlled with the joysticks and a 12” touch screen, giving you all the information you need to operate the machine efficiently.
Service friendly
As the machine is designed for high operating hours, 4 – 7000 hours per year, the service operations have been made easy, with all filters and check points from ground level and on the side of the machine, including quick connectors for all oil changes.
Global support and service
Kalmar’s global network of sales, service and support teams will be there to help keep your equipment moving and support you. Kalmar can take responsibility for the service and maintenance of your equipment and will have in stock a comprehensive range of genuine spare parts should they be needed.
