Maximize efficiency and value in empty container handling with Kalmar

Our range of empty container handlers also known as container top loaders can be built to meet your exact needs. You can choose from a range of single container stackers with 8, 9, 10 and 11 tonnes lifting capacities and a range of stacking heights from 4 to 8-high. Double container stackers are also available with 10 and 11 tonnes lifting capacities, with stacking heights from 4+1 to 8+1-high. Plus, there is a wide selection of drive lines and performance levels that you can match to your individual container handling needs.

All Kalmar counter balanced machines, including reachstackers, empty container handlers and forklifts have been updated to meet safety standard EN 1175:2020 to ensure that working with a Kalmar machine is as safe as it can be.

Technical information

Technical info Kalmar DCG80-110
Lifting capacity (lbs)
17600-24300
Wheel base (inches)
179"
Cab options
EGO (high or low)
Stacking height
max 8 / 8 + 1
Engine
Volvo 160 kW/185 kW, Cummins 164 kW
Stage emission
EU3/Tier 3, EU4/Tier 4F, EU5
Transmission
Dana TE-14300, TE-14400
Models
Single/Double stacking


More return for your money

  • Higher productivity with lower fuel consumption levels means a lower cost for every empty container you are lifting or moving.

  • Longer servicing intervals with easier access for service and maintenance will save you time and money.

  • Plus, Kalmar’s Empty Container Handlers have the highest resale values in the market.

A more robust empty container handler

Built on Kalmar’s proven G-Generation platform you will get:

  • A strong chassis with a high and rear mounted cylinder package for improved stability and toughness.
  • Upgraded drive axles with oil-cooled Wet Disk Brakes and a wider rear steer for greater stability when lifting heavy loads to heights.

Giving you a more robust and reliable empty container lifter.

More efficient to operate

Proven, powerful yet efficient drive lines with the medium performance version having a fully automatic transmission with 3 gears both forwards and backwards and the high performance having 4 gears both backwards and forwards with lock-up. Plus, a choice of engines that meet both the EU Stage 3, 4 & 5 as well as EPA Tier 3 and 4 Emissions Standards. With the added efficiency of load sensing hydraulics and Eco Drive Modes included as standard and a choice of options for greater fuel efficiency, such as Start/Stop technology and Tyre Pressure Monitoring – you will cut fuel consumption and operating costs.

Options for your Kalmar Empty Container Handler

There is a broad range of safety features and productivity options for your empty container handler. You can choose from reverse warning systems, additional cameras or lights, as well as a wide range of different drive lines and spreaders.
Your cabin can be mounted in either a high or low position, and there are four spreader options and five different lifting heights to choose from for both the single and double empty container stackers.

More comfortable and safer for your drivers

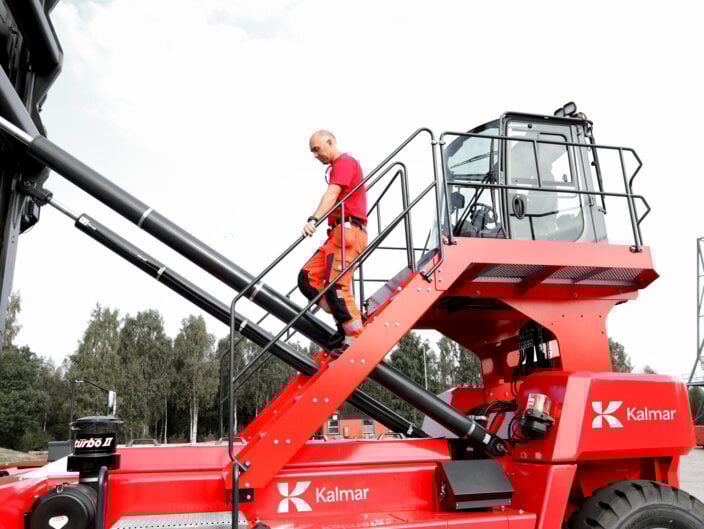

Each of our empty container handlers is fitted with a Kalmar EGO cabin with a multifunctional joystick or linear lift levers, advanced ergonomics for extra comfort and improved visibility in all directions. Plus, a new tilt cylinder design for greater driver stability and control, making it even safer when lifting and placing empty containers.

For a full list of equipment specifications for the DCG80-110 please download our brochure. For pricing information contact your local Kalmar Sales Support team.

You may also want to know

What is the difference between an empty container handler and an empty container lifter?

These are just different names used for empty container handling equipment, they are often also called empty container top loaders. Our empty container handlers have a spreader mounted on a mast, while our top loaders have a top lift spreader mounted on their mast. Both can move empty containers quickly and efficiently. To find out which is most suited to your business, speak to your local Kalmar contact.

Can I monitor the performance of my empty container lifter?

All new Kalmar Empty Container Handlers are ready to be connected to Kalmar Insight. Kalmar Insight is our performance management tool that gives you an easy to use overview of your fleet operations by aggregating data from multiple sources. Enabling you to take action on real-time information that will help improve your overall operations immediately. Kalmar Insight’s Maintenance Module can also help you manage your maintenance tasks across your fleet more effectively. To find out more click here.

Can my empty container handler run on HVO?

Kalmar Stage 3, 4 & 5 empty container handlers fitted with Volvo or Cummins engines are certified to use HVO so you can start cutting your CO2 emissions by up to 90% as soon as you start using HVO fuel. To find out more about HVO click here.
